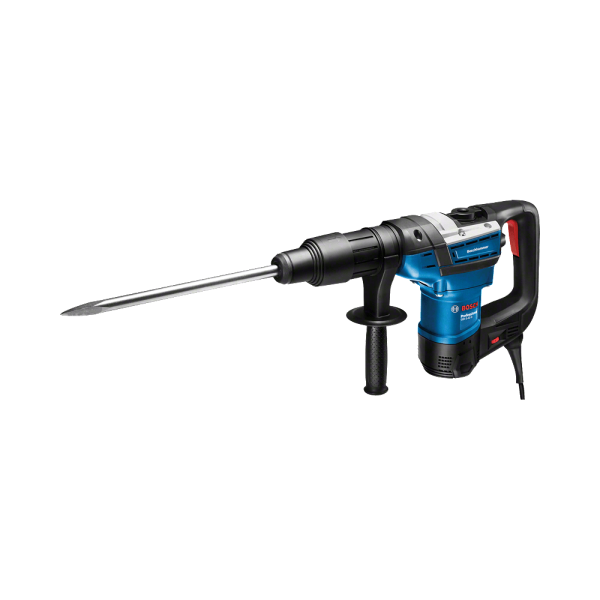

GBH 5-40 D
The powerful hammer with fastest drilling progress in its class
- Fastest drilling progress – 30% faster than its predecessor
- High material removal rate – 50% more impact energy than existing GBH 5-38 D
- Perfect handling – well balanced tool for all applications
TECHNICAL DATA
Additional data |
|
|---|---|
| Rated input power | 1,100 W |
| Impact energy | 8.5 J |
| Impact rate at rated speed | 1,500 – 2,900 bpm |
| Rated speed | 170 – 340 rpm |
| Weight | 6.8 kg |
| Tool holder | SDS max |
Drilling range |
|
|---|---|
| Drilling dia. concrete, hammer drill bits | 12 – 40 mm |
| Drilling dia. concrete, breakthrough drill bits | 45 – 55 mm |
| Drilling diameter in concrete with core cutters | 40 – 90 mm |
| Max. drilling diameter masonry, core cutters | 90 mm |
| Max. drilling diameter concrete | 40 mm |
| Opt. appl. range concrete, hammer drill bits | 18 – 32 mm |
Total vibration values (Hammer drilling in concrete) |
|
|---|---|
| Vibration emission value ah | 14 m/s² |
| Uncertainty K | 1.5 m/s² |
Total vibration values (Chiselling) |
|
|---|---|
| Vibration emission value ah | 11.5 m/s² |
| Uncertainty K | 1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
